Insights from the Charcoal factory

Charcoal is manufactured by heating wood, coconut shells, bamboo, or other biomass materials in a low-oxygen environment through a process called carbonization. During this process, moisture and volatile compounds are removed, leaving behind a carbon-rich fuel that burns hotter, cleaner, and longer than the original raw material.

Understanding how charcoal is made or how bamboo charcoal is made matters whether you’re a curious consumer, a BBQ enthusiast wanting to understand what’s in your bag, a small entrepreneur considering charcoal as a business, or an industrial buyer evaluating quality. This guide covers the full process from standing tree to finished product, including the science, the equipment choices, the economics, and the environmental realities that most articles skip over.

What Charcoal Actually Is (And What It Isn’t)

Before getting into the how, it’s worth being precise about the what.

Charcoal is not burnt wood. That’s a common misconception. When you burn wood in an open fire with full oxygen exposure, you get ash — the end product of complete combustion, where carbon reacts with oxygen to form CO₂ and escape into the atmosphere. Charcoal is something fundamentally different.

Charcoal is what you get when you thermally decompose wood in an environment with little or no oxygen. Without oxygen, the wood can’t combust. Instead, heat breaks down the complex organic molecules in the wood cellulose, hemicellulose, and lignin — driving off moisture, volatile gases, tars, and organic acids, while the carbon backbone of the wood’s structure is preserved in a transformed, concentrated form.

The result is a material that is 70–90% pure carbon, depending on the temperature and wood used. It is porous, lightweight relative to its energy content, and far more energy-dense than the original wood. A kilogram of good charcoal holds more usable heat than a kilogram of dry wood because almost none of its energy will be wasted evaporating moisture or burning off volatile compounds.

This process, thermal decomposition in a low-oxygen environment, is called pyrolysis, and it is the heart of every charcoal manufacturing method in the world, from the most primitive to the most sophisticated.

The Raw Material: Why Wood Choice Matters More Than Most People Realize

The journey of charcoal begins with the selection of feedstock, the organic material that will be carbonized. While almost any organic material can theoretically be pyrolyzed into charcoal (agricultural waste, coconut shells, bamboo, even animal bones), the most common and commercially significant feedstock is wood.

Not all wood produces the same charcoal, and the differences are significant enough to determine which markets a producer can serve.

Density is the single most important characteristic of a charcoal feedstock. Dense hardwoods, such as oak, hickory, quebracho, and ironwood, have tightly packed fiber structures with high lignin content. Lignin is the structural polymer that holds wood cells together, and it converts to carbon more efficiently than cellulose during pyrolysis. Dense wood produces dense charcoal: heavier, harder pieces that hold their shape during use, burn longer, and reach higher temperatures. This is the charcoal that premium BBQ brands, restaurant chains, and hookah cafés pay a premium for.

Softwoods like pine and spruce are lighter, higher in resin, and produce lower-density charcoal that crumbles more easily, burns faster, and sparks and pops from residual volatile compounds. This doesn’t make it worthless; softwood charcoal has industrial applications but it commands lower prices and serves narrower markets.

Agricultural waste and processing byproducts, such as coconut shells, bamboo to make bamboo charcoal, rice husks, sugarcane bagasse, and corn cobs, occupy a fascinating middle ground. Coconut shell charcoal, for example, has an exceptionally high carbon content (78–88%) and a microporous structure that makes it ideal for both hookah charcoal and activated carbon production. Bamboo produces charcoal with a surface area roughly ten times more porous than most wood charcoal, making it excellent for air and water filtration.

The moisture content of the feedstock going into the kiln is arguably as important as species choice. Fresh-cut (“green”) wood contains 40–60% moisture by weight. That moisture must be driven off during carbonization, and every kilogram of water that evaporates during the pyrolysis process steals energy that could be going into carbonization. Producers who take the time to properly pre-dry their feedstock get higher yields, meaningfully sometimes 30–40% more charcoal per ton of wood, and more consistent quality.

Also read – What Is Lump Charcoal Made Of

Step One: Preparing and Drying the Feedstock for Charcoal Manufacturing

The first step in any charcoal manufacturing operation, whether a village producer in West Africa or an industrial plant in Brazil, is preparing the raw material.

For wood-based charcoal, preparation typically involves cutting logs into manageable, roughly uniform lengths. Uniformity matters because pieces of dramatically different sizes carbonize at different rates inside the kiln. Thick, heavy pieces take longer to heat through to their core; thin pieces may over-carbonize and become brittle before the larger pieces are done. Most commercial producers aim for pieces in the 15–30 centimeter length range and 5–20 centimeters in diameter.

Once cut and stacked, the wood needs to dry. Natural air drying on open-air stacks takes anywhere from two to eight weeks, depending on climate, species, and how the wood is stacked. In humid tropical climates, this can be challenging — wood can reabsorb moisture from the air almost as fast as it dries. Industrial operations in wetter climates use rotary drum dryers that force warm air through the wood mass and can bring moisture content down to the target range in a matter of hours.

The target moisture content before carbonization is typically 10–15%. Below this threshold, the pyrolysis process proceeds efficiently, and the charcoal yield improves substantially. Investing in proper pre-drying is one of the highest-return operational decisions a charcoal producer can make. So whether they are bamboo charcoal or wood charcoal, the process is likely to be the same.

Step Two: Carbonization Where Wood Becomes Charcoal

Carbonization is the transformation step, and understanding what happens inside the kiln during this process gives you a real appreciation for the product.

When dried wood is loaded into a kiln, and the temperature begins to rise, the transformation proceeds in distinct phases, each producing different chemical outputs.

In the first phase, from about 100°C to 200°C, the remaining bound moisture in the wood evaporates. The wood begins to discolor slightly, yellowing and browning, and steam is visible from the kiln vents. No significant carbonization is occurring yet; this is still essentially a drying phase.

Between roughly 200°C and 280°C, the hemicelluloses, the structural carbohydrates that make up 20–35% of wood, begin to break down. This releases carbon dioxide, carbon monoxide, acetic acid, and methanol. The wood turns visibly brown and begins to lose its structural integrity.

The most dramatic and important phase begins around 280°C and peaks around 400°C. This is where cellulose the primary structural component of wood, making up 40–50% of its mass, breaks down rapidly in a strongly exothermic reaction. The decomposition accelerates so powerfully that it generates enough heat to sustain itself without external heat input, which is why this phase is described as “active” or “self-sustaining” carbonization. During this phase, the wood releases large quantities of flammable pyrolysis gases (methane, CO, hydrogen) along with complex organic molecules, including phenols, aldehydes, and levoglucosan. These gaseous products are extremely valuable in modern industrial operations because they can be captured and burned as fuel.

From 400°C upward, the carbon consolidation phase takes over. The majority of hydrogen remaining in the charcoal is expelled, the residual volatile organic compounds burn off, and the carbon lattice structure tightens and hardens. By the time the core of the wood mass has reached 500–600°C and held there for a sufficient residence time, true charcoal has formed: a rigid, porous carbon skeleton retaining the macro-structure of the original wood.

Higher carbonization temperatures above 600°C, toward 700–800°C, produce charcoal with higher fixed carbon content, lower volatile matter, and a more developed micropore structure. This higher-grade charcoal is more valuable for metallurgical use, activated carbon production, and hookah charcoal, but requires more energy and careful equipment. Most commercial BBQ and cooking charcoal is produced at 450–600°C, which is sufficient to achieve 70–80% fixed carbon with acceptable volatile matter levels.

The duration of carbonization is as important as the temperature. A batch that reaches 550°C but holds at that temperature for only one hour will have incompletely carbonized interior wood in larger pieces. A good carbonization cycle for batch kilns typically runs 8–24 hours from loading to completion, depending on kiln type and batch size.

Must read – Wood vs Coconut Charcoal

Step Three: Choosing the Right Kiln

The kiln, the vessel or structure in which carbonization occurs, is the most consequential choice in charcoal manufacturing. Different kiln technologies represent very different investments, yield levels, product quality outcomes, and environmental impacts.

Traditional Earth and Pit Kilns

The oldest form of charcoal production, still responsible for a substantial fraction of global charcoal output, involves simply stacking wood into a mound or pit, covering it with soil to restrict airflow, and setting it alight. The fire smolders for days — sometimes a week or more as the restricted oxygen supply prevents full combustion and allows pyrolysis to proceed.

The advantages are obvious: near-zero capital cost, no specialized equipment, and materials that exist everywhere on earth. The disadvantages are severe. Yields are typically 10–18%, meaning 82–90% of the wood mass is lost, most of it as uncontrolled emissions. The quality is inconsistent, with partially carbonized pieces (called “brands”) mixed among fully carbonized ones. The emissions profile is extremely poor, releasing large quantities of methane, black carbon, and organic compounds directly into the atmosphere.

These kilns persist in developing countries because they require no upfront investment in a context where capital is scarce. But from an efficiency, quality, and environmental standpoint, they represent the worst available technology.

Must read – How Charcoal Briquettes Are Made

Steel Drum and Portable Metal Kilns

A significant improvement over earth kilns, portable steel kilns (often built from 200-liter steel drums or purpose-fabricated steel chambers) allow much better control of air intake. By controlling the venting, the operator can manage carbonization temperature and prevent combustion of the charcoal itself.

Yields improve substantially, typically 20–28%, and the cycle time drops to 8–15 hours. Capital cost is low enough (a few hundred to a few thousand dollars) that small commercial producers can justify the investment. These kilns are widely used in Latin America, Southeast Asia, and by artisan charcoal producers in Europe and North America. They cannot recover the pyrolysis gases produced during carbonization, however, which means significant energy is wasted and emissions remain high.

Retort Kilns

A retort kiln is a sealed steel chamber with an external heat source; the feedstock inside the retort is never exposed to the flame. Heat passes through the retort walls, driving pyrolysis without any combustion occurring inside the chamber.

This design has several critical advantages. Because the carbonization is purely by external heat, yields are higher; 30–38% is typical. The pyrolysis gases generated inside the retort can be captured, piped to the external burner, and used as fuel, dramatically reducing operating costs. Quality is very consistent across the entire batch because temperature distribution is more uniform. And emissions are lower because combustion occurs only in the controlled external burner rather than in the open carbonization environment.

Retort kilns are the preferred choice for medium-scale commercial operations producing 1–10 tons of charcoal per day. Capital costs range widely, from around $20,000 for a small fabricated unit to $200,000+ for a large industrial-grade steel retort, but the payback period is typically 18–36 months in well-run operations.

Continuous Carbonization Furnaces

Industrial-scale charcoal production uses continuous carbonization furnaces (CCFs) mechanized systems that accept feedstock at one end and discharge finished charcoal at the other in an uninterrupted flow, 24 hours a day, 7 days a week.

These systems typically use a conveyor belt, screw auger, or rotating drum to move the feedstock slowly through progressively hotter temperature zones. The residence time how long the material spends in the furnace is precisely controlled by the speed of the conveyor or rotation rate of the drum. Pyrolysis gases are routinely captured and recirculated as burner fuel, making modern CCFs partially or fully energy self-sufficient during steady operation.

The economics are compelling at scale. A 5-ton-per-day CCF might cost USD 250,000–500,000 to install, but operating costs per ton of charcoal produced are significantly lower than batch systems, and the ability to operate continuously means consistent throughput and quality. For industrial operations supplying metallurgical charcoal, activated carbon feedstock, or large commercial BBQ brands, CCFs are the standard.

Step Four: Cooling The Most Underestimated Step

Cooling is not merely a passive waiting period after carbonization. It is a critical safety and quality step that, when done incorrectly, destroys product and can cause fires.

Freshly carbonized charcoal at 400–600°C is extremely reactive. The porous carbon surface has enormous surface area, and exposure to air at these temperatures causes immediate oxidation — the charcoal begins to combust spontaneously. This phenomenon, called “re-ignition” or “hot-loading,” has caused charcoal production fires and warehouse losses around the world.

The correct approach is to seal the kiln completely after carbonization and allow the contents to cool inside the sealed chamber before opening. Depending on batch size and kiln thermal mass, this takes 12–48 hours. Industrial continuous systems use water-jacketed cooling conveyors that bring charcoal from 600°C to below 50°C within a closed, oxygen-excluded system before it is discharged.

The target temperature for safe discharge to open air is below 50°C. Even this sounds conservative to some operators — and some push products out at higher temperatures — but the risk is real. Charcoal is responsible for a disproportionate number of warehouse and logistics fires precisely because of hot-loading incidents.

Must read – Charcoal grades

Step Five: Screening, Grading, and Quality Assessment

After cooling, raw charcoal from the kiln is a heterogeneous mix of large irregular lumps, smaller pieces, and fines (dust and fragments smaller than 5mm). Before it can be sold, it must be sorted.

Commercial charcoal goes through a series of vibrating screens that separate the material by size. Different size fractions serve different markets. The large lumps (40–150mm) command the highest prices in the BBQ and restaurant market, where customers pay a premium for attractive, large-piece lump charcoal. Medium pieces (20–40mm) go to household and domestic cooking markets. Small screenings and fines (under 10mm) are typically recycled into briquette production, where they are re-compressed with a binder.

Beyond size, quality assessment involves laboratory testing of representative samples. The most important parameters measured are fixed carbon content (the actual carbon percentage, excluding moisture, ash, and volatile matter), moisture content, volatile matter, ash content, and calorific value. Premium lump charcoal for export or high-end retail should carry a proximate analysis certificate with each batch — this is the charcoal equivalent of a nutrition label, and sophisticated buyers in export markets won’t purchase without it.

Visual quality assessment also matters. Good charcoal is deep black throughout, with a ringing sound when pieces are knocked together (indicating full carbonization). Pieces that are brown internally, soft, or chalky are under-carbonized. Excessive white or gray ash patches indicate moisture problems or kiln issues.

Step Six: Packaging and the Hidden Importance of Storage

The final step before a product reaches a customer is packaging and storage — and this is an area where quality can be lost very easily if not handled carefully.

Charcoal is highly hygroscopic, meaning it actively absorbs moisture from the air. Premium charcoal with 4–5% moisture content at packaging can absorb additional moisture during storage and shipping, especially in humid climates, eventually arriving at the customer as a heavier, less efficient product. Packaging in moisture-resistant poly bags or paper sacks with poly liners protects against this.

Storage areas for charcoal should be dry, ventilated, and critically away from combustion risks. Large quantities of charcoal in enclosed spaces can create a self-heating risk if improperly handled, especially if stored while still warm from production.

For export, charcoal is typically packed in jumbo bags (500–1,000 kg) or steel drums for container shipping. Containers should be ventilated — enclosed containers with charcoal can accumulate carbon monoxide from residual off-gassing, creating a serious hazard for workers who open containers at the destination port.

Also read – types of charcoal

The Environmental Reality of Charcoal Manufacturing

No serious discussion of charcoal manufacturing can ignore its environmental context. Globally, charcoal production is a leading driver of tropical deforestation, particularly in Sub-Saharan Africa, where traditional earth kilns consume enormous quantities of natural forest with low efficiency and no reforestation commitment. The FAO estimates that charcoal production accounts for roughly 3% of global greenhouse gas emissions.

The picture is not uniformly grim, however. Modern industrial charcoal plants built around sustainably managed plantations of fast-growing species — eucalyptus in Brazil, bamboo in China and Southeast Asia, casuarina in India — have a dramatically different environmental footprint. When pyrolysis gases are captured and used as fuel, when plantations are managed with replanting commitments, and when biochar co-products are returned to soil, charcoal manufacturing can be a genuinely low-carbon enterprise.

The Brazil case is instructive: the country’s massive metallurgical charcoal industry, which supplies carbon for pig iron smelting, has progressively shifted from native forest charcoal to plantation eucalyptus over several decades, reducing deforestation pressure substantially while maintaining production volumes. This model is increasingly the template for responsible industrial charcoal development globally.

What Makes a Great Charcoal: Putting It All Together

The quality of the finished charcoal is the sum of every decision made through the manufacturing process. The best charcoal in the world starts with dense, mature, sustainably sourced hardwood or shell feedstock. It is properly dried before carbonization. It is carbonized at the right temperature, for the right duration, in a kiln that controls oxygen precisely and reaches uniform temperatures throughout the mass. It is cooled carefully, screened to consistent sizes, tested against measurable quality parameters, and packaged in moisture-resistant materials.

Where shortcuts are taken, green wood rushed into the kiln to save drying time, a kiln opened too soon to increase throughput, fines left in the bag to hit a weight target the customer feels it in lighting time, burn temperature, ash volume, and the overall experience.

This is why the best charcoal brands command prices 2–4 times higher than commodity charcoal. The price differential is rarely about branding it is about the accumulated effect of doing every step of the manufacturing process properly.

For Further Reading:

charcoal exporting countries
how is bamboo charcoal made​
Charcoal HS Codes
lump charcoal vs briquettes

can charcoal be reused
Best charcoal for smoking

types of charcoal

Frequently Asked Questions

Walk into any serious BBQ supply store, and you’ll find two types of charcoal on the shelf: briquettes and lump. The briquettes are uniform, pillow-shaped, and cheap. The lump charcoal is irregular, jagged, and costs noticeably more. If you ask the person behind the counter why, they’ll probably say something like “it’s more natural” or “it burns hotter.” Both of those things are true — but they barely scratch the surface of what makes lump charcoal different, where it comes from, and why the manufacturing process behind it produces a product that serious cooks have used for centuries and continue to prefer over everything else.

This article covers What Is Lump Charcoal Made Of, the science of how it’s produced, what to look for when buying it, and why the wood species used changes the product more than most people realize.

The One-Sentence Answer — And Why It’s Not Enough

Lump charcoal is made from wood that has been carbonized heated to high temperatures in a low-oxygen environment until everything except the carbon structure has been driven off.

That’s the accurate, honest answer. But it tells you almost nothing useful. “Wood heated until only carbon remains” describes both a premium bag of single-origin quebracho charcoal that burns at 1,100°C for an hour and a bag of mystery-wood charcoal that crumbles in your hands, sparks like a fireworks display, and tastes faintly of chemicals. The difference between those two products comes entirely from what species of wood was used, how it was prepared, and how carefully the carbonization process was controlled. Get the wholesale price for wood lump charcoal.

So let’s go deeper.

What Is Lump Charcoal Made Of: Starting With the Wood

The most fundamental thing to understand about lump charcoal is that it contains exactly one ingredient: carbonized wood. No binders, no fillers, no accelerants, no coal dust, no cornstarch. If you are holding a piece of genuine lump charcoal, you are holding a piece of wood from which everything except the carbon framework has been removed.

This is the defining difference between lump charcoal and briquettes. Briquettes are an engineered product — charcoal dust compressed with starch binders, sometimes with limestone added for white ash aesthetics, sometimes with sodium nitrate added for faster lighting. Briquettes are predictable and consistent precisely because they are manufactured to a formula. Lump charcoal has no formula. What you get in the bag is a direct reflection of the wood that went into the kiln.

This is why wood species selection matters so enormously in lump charcoal production. The species determines the density, the lignin content, the mineral profile, the moisture behavior, and ultimately the quality of the carbon structure that survives pyrolysis.

Dense Hardwoods: The Gold Standard

The best lump charcoal in the world is made from dense tropical and temperate hardwoods. The denser the wood going in, the denser and more energy-rich the charcoal coming out.

Quebracho, a family of South American hardwoods (primarily Schinopsis balansae and Schinopsis lorentzii) from the Gran Chaco region of Argentina and Paraguay, is arguably the most prized charcoal wood in the world. Its name literally translates from Spanish as “axe breaker” — a testament to its density, which rivals many stones. Quebracho-based charcoal like Jealous Devil is among the most coveted by competitive pitmasters because it produces extraordinarily large, dense chunks, burns for a very long time, and has a relatively neutral flavor that doesn’t compete with the smoke from cooking wood.

Oak is the workhorse of the North American and European lump charcoal industry. It is abundant, grows in managed forests, and produces well-balanced charcoal with good density, moderate burn duration, and a mild, clean flavor. Most mid-range lump charcoal in American BBQ stores uses oak as its primary or sole wood.

Hickory is preferred by BBQ enthusiasts who want a bold, smoky flavor baked into the charcoal itself. Hickory charcoal burns hot and produces distinctively flavored smoke. It is somewhat less dense than oak and quebracho, but its flavor contribution makes it popular for traditional American barbecue.

Mesquite grows abundantly in the American Southwest and northern Mexico and produces a charcoal with an intense, earthy character. Mesquite charcoal lights relatively quickly, burns extremely hot, and has a flavor profile that polarizes people — deeply appreciated in Tex-Mex and Southwestern BBQ traditions, overwhelming in more delicate applications.

Coconut shell occupies a special place in the lump charcoal world. Technically not a wood at all, coconut shell produces charcoal with some of the highest fixed carbon content of any natural feedstock — often 80–88% — and an exceptionally microporous structure. Coconut shell lump charcoal burns clean, hot, and long, with very low ash. It is increasingly popular in the premium market and is the dominant raw material for hookah charcoal worldwide.

You should explore some of the best-selling wood lump charcoal at wholesale prices –

• machine-made wood charcoal
• A-Grade Low-Ash Shaped Wood Charcoal
• A-Grade Wood Charcoal for BBQ – Low Ash
• A-Grade Wood Charcoal for Grilling

Why Density Matters: The Lignin Connection

The reason dense hardwoods produce better charcoal is ultimately a matter of chemistry. Wood is composed primarily of three structural polymers: cellulose, hemicellulose, and lignin. Cellulose and hemicellulose are carbohydrate chains that break down readily during pyrolysis, contributing to the carbon yield but also to volatile losses. Lignin is a complex aromatic polymer that forms the “glue” holding wood cells together, and it has the highest carbon retention during pyrolysis of the three components.

Dense hardwoods contain proportionally more lignin than light softwoods or agricultural residues. More lignin means more carbon survives the pyrolysis process intact, which means denser, harder, more energy-rich charcoal. This is not an abstraction — you can feel it. Pick up a piece of good quebracho charcoal and a piece of cheap softwood charcoal. The quebracho piece is noticeably heavier for its size, harder to break, and when you crack it open, the interior has a bright, glassy black surface. The softwood piece feels almost hollow by comparison. And when you’re ready to buy, do not forget to check the charcoal supplier verification checklist.

What Lump Charcoal Should Not Contain

This point deserves explicit attention because it affects both quality and safety.

Genuine lump charcoal made from untreated natural wood is entirely safe for cooking. However, the lump charcoal market has a transparency problem: most bags do not fully disclose their wood source, and some manufacturers use wood that should not be in cooking fuel.

Construction lumber scraps and dimensional timber can contain preservative treatments — particularly older lumber may contain chromated copper arsenate (CCA), which releases toxic arsenic compounds when burned. Pallet wood is a particular concern; while pallets marked “HT” (heat treated) are safe, those marked “MB” (methyl bromide fumigation) are emphatically not. Plywood, MDF, and particle board all contain formaldehyde-based adhesives that release toxic compounds at cooking temperatures.

The safest approach as a consumer is to buy lump charcoal from brands that explicitly state the wood species and source on the packaging. If a bag of charcoal says only “hardwood” without specifying species, that’s a yellow flag. If it provides no wood information at all, treat it with skepticism.

How Lump Charcoal Is Made: The Full Process

The Pre-Carbonization Stage: Getting the Wood Ready

Before any wood goes into a kiln, it needs to be in a state that will carbonate efficiently and uniformly. This sounds obvious but is one of the most commonly skipped steps in lower-quality operations.

Logs and offcuts are cut into pieces of roughly consistent length and diameter — typically 15–40 centimeters long and 5–20 centimeters in diameter. The consistency in size isn’t about aesthetics; it’s about ensuring that all pieces in a batch reach full carbonization at approximately the same time. A kiln loaded with a mix of wrist-thin branches and 30-centimeter-diameter logs will inevitably produce a batch where the thin pieces are over-carbonized and brittle while the thick pieces are still brown and partially raw in their cores. If you really intrested then must read about, How Charcoal Is Manufactured.

The wood then needs to lose most of its moisture. Fresh-cut wood is often 40–60% water by weight. That water has to go somewhere during pyrolysis, and the energy required to evaporate it comes at the direct expense of carbonization efficiency. Producers who take the time to properly dry their wood — either by stacking and air-drying for weeks in the open air, or by running material through a mechanical dryer — see dramatically higher yields and more consistent product. The target moisture content before loading the kiln is typically 10–15%.

Also read – Charcoal Bulk Buying Guide

Carbonization: The Transformation

The wood is loaded into a kiln, the type of kiln varies enormously and is discussed separately below, and the carbonization process begins.

Here is what actually happens to a piece of hardwood inside a kiln as the temperature rises:

The first thing that happens, from around 100°C to 180°C, is straightforward drying. Any remaining moisture in the wood evaporates and exits through the kiln vents as steam. The wood changes color very slightly but has not yet begun to transform chemically in a meaningful way.

Between 180°C and about 270°C, the hemicelluloses begin to break down. These are the shorter, more easily broken carbohydrate chains in the wood. Their decomposition releases acetic acid (which condenses as wood vinegar when captured), methanol, CO₂, and carbon monoxide. The wood turns noticeably brown and begins to feel softer. This phase is sometimes called pre-carbonization, and some of the most aromatic and medicinally interesting byproducts of charcoal production come from this stage.

The critical transformation begins at around 270°C and accelerates dramatically around 300–320°C. This is where cellulose — the primary structural polymer making up roughly 40–50% of the wood — reaches its decomposition temperature. The breakdown of cellulose is exothermic, meaning it generates heat on its own. Once this phase starts, the kiln essentially drives itself — the heat released by decomposing cellulose sustains the temperature needed for further decomposition. The wood releases large quantities of flammable gases (methane, CO, hydrogen) along with complex organic volatiles. In modern industrial systems, these gases are captured and burned as kiln fuel. In traditional kilns, they escape as the characteristic blue-gray smoke visible from a charcoal operation.

From 320°C to about 450°C, the material transitions from brown, partially decomposed wood to true black charcoal. The basic carbon skeleton of the wood’s cell structure is preserved — this is why you can often see growth rings and grain patterns in a cross-section of lump charcoal — but nearly everything else has been driven off. The material shrinks and loses mass dramatically.

From 450°C upward, the charcoal undergoes consolidation. Residual hydrogen atoms are expelled, the carbon lattice tightens, and the micropore structure of the charcoal develops. Higher temperatures within this range produce progressively harder, denser charcoal with higher fixed carbon content. Most premium lump charcoal is produced with peak temperatures between 500°C and 700°C. Beyond 700°C you begin to move toward the territory of metallurgical and activated carbon grades, which require different handling and are not typically produced for BBQ applications.

The Kiln Makes All the Difference

The same wood, processed in two different kilns, will produce meaningfully different charcoal. The kiln determines how uniformly temperature is distributed across the batch, how well oxygen is controlled, whether the batch can be held at peak temperature long enough for complete carbonization, and whether any of the valuable pyrolysis byproducts are captured or simply vented.

Traditional earth mound kilns — still used widely in parts of Africa, South Asia, and Latin America — produce yields of 10–18%. That means 82–90% of the wood mass is wasted. The quality is uneven because different parts of the mound reach different temperatures and hold them for different durations. The uncontrolled combustion that keeps the mound hot also consumes charcoal at the edges. What emerges is a mix of excellent pieces, partially carbonized “brands,” and ash where combustion ran too hot.

Steel drum and portable metal kilns are a significant step up — yields improve to 20–28%, cycle times drop to 8–15 hours, and the operator has real control over air intake to manage the process. These are the kilns of choice for artisan lump charcoal producers, small commercial operations, and specialty producers making single-origin products.

Retort kilns — sealed steel chambers where the wood is never exposed to flame and heat is applied externally are where quality lump charcoal production really comes into its own. Because combustion cannot occur inside the retort, the entire wood mass converts to charcoal rather than ash at the edges. Yields reach 30–38%. The temperature distribution is more uniform. And the pyrolysis gases can be captured and piped to the external burner, dramatically reducing the fuel cost of the operation. The charcoal produced in a well-run retort is noticeably more consistent in quality and carbon content than anything produced in an open or direct-fired system. Charcoal grades are also important.

Also read – Wood vs Coconut Charcoal

Cooling, Breaking, and Grading

After carbonization is complete, the charcoal must be cooled inside the sealed kiln before any exposure to air. This is not optional — it is a safety imperative. Charcoal at 400–600°C in contact with oxygen will ignite spontaneously. Good operations seal the kiln at the end of carbonization and leave it sealed for 12–48 hours until the temperature has fallen to a safe level, typically below 50°C.

Once cooled, the charcoal is discharged and broken apart. During carbonization, pieces of wood that were loaded separately sometimes fuse together as their surfaces soften and come into contact. Workers or mechanical tumblers break these fused pieces apart, and the entire batch is run through a series of vibrating screens to separate it by size.

This grading step is where lump charcoal quality reveals itself most visibly. High-quality batches produce a large proportion of substantial, well-formed pieces with minimal fines — the dust and small fragments that result from over-carbonized, brittle wood or rough handling. Premium brands hand-sort their charcoal before packaging, removing undersized pieces and fines that would otherwise end up at the bottom of the bag. Lower-cost brands skip this step, which is why the bottom third of a cheap bag of lump charcoal is often mostly dust.

What Good Lump Charcoal Looks, Sounds, and Feels Like

Because lump charcoal is a natural product with no standardized formula, learning to evaluate it by sensory inspection is genuinely useful.

Appearance: Good lump charcoal is uniformly deep black throughout. Crack open a piece — the interior should be the same pure black as the surface, with a slightly glassy or lustrous quality. Brown interiors indicate under-carbonization: the pyrolysis didn’t reach the core. Gray or white patches on the surface indicate moisture issues or incomplete processing.

Sound: This is the test most expert buyers use. Pick up two pieces of good lump charcoal and knock them together. You should hear a clear, clean ringing sound — almost metallic. This indicates fully carbonized, dense carbon structure. A dull thud indicates soft or under-carbonized material that will crumble during use and produce far more smoke and volatile compounds during lighting.

Weight: Good lump charcoal is lighter than you’d expect for its size — it has lost 70–75% of the original wood’s mass during carbonization, and its porous structure means it’s full of space. But within those expectations, denser species produce noticeably heavier pieces, which is a positive indicator.

Fines ratio: Shake the bag gently before opening and observe how much dust comes through the material. A small amount of fines (5–10%) is inevitable in any lump charcoal. More than 15–20% suggests either low-quality wood, aggressive processing that fractured the charcoal, or a bag that has been damaged or repeatedly handled roughly. After all of this, if you plan to buy the lump charcoal, please do not forget to check the bamboo charcoal market​.

How Lump Charcoal Burns: What the Manufacturing Process Determines

The performance characteristics of lump charcoal at the grill — lighting speed, maximum temperature, burn duration, ash volume, smoke output — are all direct consequences of the manufacturing decisions made upstream.

Lighting speed is primarily a function of volatile matter content. Charcoal that was carbonized at relatively lower temperatures (400–500°C) retains more volatile compounds that ignite easily and help the charcoal catch. This sounds like an advantage but has a tradeoff: those same volatiles produce more smoke during the lighting phase and can impart off-flavors until fully burned off. Charcoal carbonized at higher temperatures (550–700°C) lights slightly less quickly but burns cleaner immediately.

Maximum temperature is primarily determined by wood density and fixed carbon content. Denser wood species with higher lignin content produce charcoal with higher fixed carbon percentages, and that translates directly to higher peak temperatures. This is why quebracho and coconut shell charcoal are used by professional cooks who need very high heat — the raw material advantage translates directly to grill performance.

Burn duration is primarily a function of piece size and density. Large, dense lump charcoal from a dense hardwood burns longer than small pieces from lighter wood. This is why experienced cooks prefer the large lump grade for long cooks and why the XL pieces at the top of the bag are worth more than the smaller pieces at the bottom.

Ash volume is largely a function of the original wood’s mineral content. Wood naturally contains minerals — calcium, potassium, silicon, and magnesium — that do not burn off during carbonization and form ash. Dense tropical hardwoods with low mineral content (like quebracho or mesquite) produce very little ash. Softer woods with higher mineral content produce more.

Frequently Asked Questions

There is a reason charcoal briquettes dominate the shelves of every supermarket, hardware store, and mass-market retailer that sells BBQ supplies. They are cheap to produce, consistent in shape and burn time, easy to package, and simple for casual cooks to use. Pick them up, stack them in a pyramid, light the bottom, wait twenty minutes, spread them out, and cook. The uniformity is the product.

But that uniformity comes from somewhere. Charcoal Briquettes are not a natural product, the way lump charcoal is; they are a manufactured one, engineered from multiple ingredients and shaped under pressure into the recognizable pillow form that most people picture when they think “charcoal.” Understanding how they’re made explains everything about how they perform, why some briquettes are better than others, and what you’re actually burning when you cook over them.

The Invention of the Briquette

Before getting into the manufacturing process, a bit of history is worth knowing because it reveals the original purpose of the briquette — and it wasn’t backyard grilling.

Henry Ford invented the charcoal briquette in the early 1920s, not for cooking but for waste reduction. His automobile plants generated enormous quantities of wood scraps and sawdust from the production of wooden car parts. Ford, who hated waste, worked with E.G. Kingsford (yes, that Kingsford) to build a plant that would carbonize this wood waste and compress the resulting charcoal dust into uniform blocks. The Kingsford Charcoal Company that grew from this enterprise remains the dominant briquette brand in the United States a century later.

Ford’s insight was that charcoal dust — the fine powder left over when lump charcoal is produced and screened — had value if it could be reconstituted into a usable form. A pile of dust burns uncontrollably and can’t be used on a grill. Compress that same dust into a dense, uniform block with a binder and you have a fuel that lights reliably, burns at a predictable rate, and holds its shape throughout the cook. The briquette is fundamentally a recycling innovation.

What Briquettes Are Made Of

The composition of a charcoal briquette varies significantly between manufacturers, price points, and intended markets. But every briquette starts with the same basic logic: take carbonized carbon, bind it together, add whatever else the formula calls for, press it into shape, dry it, and package it.

The Carbon Component

The primary ingredient in any charcoal briquette is carbonized carbon — the fuel itself. In premium products, this is pure charcoal: the fines and dust screened out during the grading of hardwood lump charcoal. These fines are a natural byproduct of lump production, making Charcoal Briquettes a genuine value-chain complement to lump charcoal manufacturing. What can’t be sold as lump charcoal gets compressed into briquettes.

In lower-cost or commodity Charcoal Briquettes, the carbon component is often partially or entirely coal dust — typically anthracite or bituminous coal — blended with charcoal fines. Coal has a higher fixed carbon content than charcoal (85–95% vs. 65–85%) and is considerably cheaper, which makes the economics attractive. The tradeoff is that coal burns hotter and harder but contributes to more sulfurous smells and is a fossil fuel rather than a renewable material. Most premium Western brands avoid coal dust; many economy brands, particularly in developing markets, use it extensively.

The quality of the carbon component is the single most important factor in briquette quality. Charcoal Briquettes made from high-grade hardwood charcoal fines — dense hardwood, properly carbonized at 500°C+ — burn hotter, produce less ash, and have a cleaner flavor profile than those made from softwood charcoal or coal. This upstream quality difference is invisible on the label but completely apparent in performance.

Also read – how is bamboo charcoal made​

The Binder

Loose charcoal dust has no structural integrity whatsoever compress it, and it immediately crumbles back into powder. To hold the briquette together through pressing, drying, shipping, handling, and the first phase of burning, a binder is essential.

The choice of binder has a profound effect on the finished product, and this is where briquette manufacturers differentiate most sharply between product tiers.

Starch binders — typically cornstarch, tapioca starch, cassava starch, or wheat starch are the gold standard for food-safe, clean-burning Charcoal Briquettes. Starch forms a strong, water-resistant bond when cooked and mixed with charcoal, holds the briquette together through mechanical handling, and burns off early in the lighting process without contributing meaningful odor or flavor. Every premium briquette brand uses a starch binder. The concentration typically runs 8–15% of the dry mixture weight, enough to bind without leaving a high-moisture product that takes forever to dry.

The starch must be cooked before mixing. Raw starch granules have minimal adhesive properties; it’s only when they are heated in water to 70–85°C, a process called gelatinization, that the starch chains uncoil and become the thick, sticky paste that binds charcoal particles together. Getting this preparation right is one of the more technically demanding aspects of briquette manufacturing. Too thin and the binder doesn’t hold; too thick and it doesn’t distribute evenly through the charcoal mass.

Coal tar pitch and petroleum pitch are used in some industrial and economy briquettes as binders because they are extremely effective in producing very strong, water-resistant Charcoal Briquettes and are cheap. The problem is that they are petroleum derivatives that produce unpleasant chemical smells during burning and are completely inappropriate for cooking applications. These binders are common in heat briquettes for industrial applications but should never appear in food-grade charcoal.

Molasses is used by some manufacturers as a natural, food-safe binder. It is less effective than starch Charcoal Briquettes, bound with molasses and are softer and more fragile, but it adds a slight caramelized character to the smoke and is popular in certain markets.

Explore some of the best-selling Charcoal Briquettes:

• A-Grade BBQ Charcoal
• A-Grade Wood Charcoal for BBQ
• Low-Ash Machine-Made Wood Charcoal for BBQ

The Fillers and Additives

Beyond carbon and binder, Charcoal Briquettes often contain additional ingredients that serve specific functions — some benign, some worth knowing about.

Limestone (calcium carbonate) is added to many standard Charcoal Briquettes to produce the distinctive white-gray ash that consumers associate with “ready to cook.” Pure charcoal ash is a dark gray color. Adding 5–10% limestone produces a brighter white ash that has become the visual signal consumers look for before spreading their coals. It also helps the briquette hold its shape during pressing. The downside is that limestone increases ash volume and slightly dilutes the fuel content.

Borax (sodium tetraborate) is used in small quantities as a processing aid — it helps the starch binder activate properly and makes the wet mixture easier to press in the forming machine. Used at 1–2%, it has no meaningful impact on the burning product.

Sodium nitrate is the ingredient that divides natural briquettes from instant-light products. Sodium nitrate is an oxidizer — it releases oxygen as it decomposes, which sustains combustion even without adequate airflow. Charcoal Briquettes with sodium nitrate light with a standard lighter or match within seconds. The tradeoff is the acrid, chemical smell that every user of instant-light charcoal has experienced. This smell comes from the combustion products of sodium nitrate decomposition, and it takes 60–90 seconds to fully dissipate. Used impatiently — putting food on before the chemical smell clears — it transfers that character directly to the food.

Sawdust is sometimes added as a filler and texture modifier. It reduces the density of the finished briquette slightly, making it lighter and less energy-dense, but also makes pressing easier and reduces raw material cost.

Must read – Charcoal Bulk Buying Guide

The Manufacturing Process, Step by Step

Producing or Sourcing the Charcoal

The first decision for any briquette manufacturer is whether to produce their own charcoal or buy it. Large integrated producers — like Kingsford in the United States or major manufacturers in Southeast Asia and Europe — operate their own carbonization plants that produce charcoal specifically for briquette production, often from wood waste streams (sawdust, chips, offcuts) that are cheaper than logs. Smaller briquette manufacturers often purchase charcoal fines from lump charcoal producers who generate fines as a screening byproduct.

The economics of this decision depend heavily on local feedstock availability and logistics. In Indonesia, where coconut industry waste (shells, husks) is abundant and cheap, building an integrated operation — carbonizing your own coconut shells and pressing them into briquettes — makes strong economic sense. In an urban market with no local biomass, purchasing charcoal fines and focusing on the pressing and packaging operation is more practical.

Grinding and Particle Size Control

Raw charcoal from a kiln comes out in irregular pieces ranging from large lumps to fines. Before it can be pressed into Charcoal Briquettes, it needs to be reduced to a consistent fine powder. This is done in stages.

The first stage uses a jaw crusher or hammer mill to break large pieces down to a centimeter or two. The second stage uses a finer hammer mill or ball mill to reduce this to the target particle size — typically 0.5 to 2 millimeters for standard briquettes, finer for denser or more specialized products. The ground material is then screened to ensure consistency; anything too coarse goes back through the mill.

Particle size has a real effect on briquette quality in ways that aren’t immediately obvious. Finer particles pack more densely under pressure and produce stronger, harder briquettes that hold their shape better under rough handling. But grind too fine and the briquette becomes so dense that it has poor porosity, meaning air has difficulty reaching the interior during burning — the briquette lights unevenly and may have a hard, unburned core. The target particle size represents an optimization between structural strength and burn performance.

Drying the Charcoal Powder

This step is often overlooked but matters significantly. Charcoal fines in storage or fresh from the kiln typically carry 10–20% moisture. When the binder paste is added to moist charcoal, the actual binder ratio becomes unpredictable — wet charcoal dilutes the binder and produces weak, crumbly briquettes. The charcoal powder should be dried to 5–8% moisture before mixing to ensure consistent binder performance.

Also read – How Charcoal Is Manufactured

Preparing the Binder

In a commercial operation, binder preparation runs continuously alongside the mixing and pressing line. Starch is mixed with cold water in a measured ratio, then heated in a jacketed mixing vessel to between 70°C and 85°C with continuous stirring. As the temperature rises, the starch granules swell, burst, and release their amylose and amylopectin chains — this is gelatinization, and it transforms a watery slurry into a thick, viscous paste. The paste is held at temperature until it reaches the right consistency, then cooled to 40–50°C before use.

The quality of this paste preparation step ripples through the entire downstream process. Undercooked starch paste is too thin and watery, producing Charcoal Briquettes that are fragile even after drying. Overcooked paste becomes lumpy and difficult to distribute evenly through the charcoal mass. Getting it right consistently is one of the practical skills that differentiates experienced operators from beginners.

Mixing

Charcoal powder and hot binder paste are combined in a paddle mixer, ribbon mixer, or sigma blade kneader. The goal is complete, homogeneous distribution of binder throughout the carbon mass — every particle of charcoal should be coated with binder, and there should be no dry pockets or binder-rich clumps.

The mixing temperature matters because the starch binder must remain fluid during mixing to distribute properly. Mixing is typically done at 35–55°C, which keeps the starch just fluid enough to coat particles while being cool enough to handle. The resulting mixture should have the consistency of dense, slightly sticky clay — cohesive enough to hold its shape when squeezed, but loose enough to flow into a press mold.

The moisture content of the mixture at this point is critical. Too wet (above 35%) and the Charcoal Briquettes will shrink dramatically during drying and may crack. Too dry (below 20%) and the pressing force required to produce a solid briquette increases dramatically, stressing the equipment and producing denser but often overly hard briquettes. Most operations target 25–32% moisture in the mixed mass before pressing.

Forming the Briquette

The mixed charcoal paste is fed into a pressing machine that compresses it into the target shape. There are three main forming approaches used commercially.

Rotary tablet presses work exactly like pharmaceutical tablet presses — a die cavity is filled with a measured amount of the charcoal mixture, an upper punch descends, and the mixture is compressed to a set pressure, forming a single briquette. The die then opens and ejects the finished briquette onto a conveyor. High-speed machines have multiple punch stations arranged in a rotating carousel, producing several briquettes per second. This method produces extremely uniform, accurately weighed briquettes and is the standard for hookah charcoal and premium BBQ Charcoal Briquettes.

Screw extruders work differently — a rotating screw auger forces the charcoal mixture continuously through a shaped die under pressure. A rotary knife cuts the extruded rod into individual Charcoal Briquettes at a set interval. This is efficient for high-throughput production, particularly for cylindrical or hexagonal shapes. The continuous nature of extrusion means there’s no pause between briquettes, and throughput rates can be very high. The limitation is that extruder pressure is somewhat less controllable than punch-and-die pressing, so density consistency can be slightly lower.

Roller presses pass the charcoal mixture between two counter-rotating rollers that have pocket-shaped depressions machined into their surfaces. As the rollers turn, the depressions come together and the material between them is compressed into the pocket shape. Roller presses work best with slightly drier mixtures and are extremely fast, but the pressure distribution across the pocket is less uniform than punch-and-die pressing, which can produce briquettes with density variations from center to edge.

Regardless of forming method, the compression pressure determines the density of the finished briquette, which in turn affects porosity, burn rate, and structural integrity. Most standard BBQ briquettes are pressed at 5–15 MPa. Higher pressure produces harder, denser briquettes with longer burn times; lower pressure produces softer Charcoal Briquettes that light more easily but burn faster.

Drying

Freshly formed Charcoal Briquettes are structurally weak — the binder is still hydrated and the moisture content is 25–32%. They need to be dried to 5–8% moisture to develop their final strength and become suitable for packaging and use.

Drying must be done carefully. The outer surface of the briquette dries faster than the interior, and if the drying rate is too aggressive, the outer shell can harden and shrink before the interior has had a chance to dry, creating internal stress that cracks the briquette during or after drying. Industrial briquette lines use belt conveyor dryers or tunnel dryers that expose Charcoal Briquettes to moderate temperatures — typically 70–100°C — in controlled airflow conditions that allow moisture to escape uniformly. The residence time in the dryer ranges from 2 to 8 hours depending on briquette size, density, and initial moisture content.

The energy cost of drying is one of the largest operating costs in briquette manufacturing. Operations that can recover waste heat from their carbonization kilns to power the dryer achieve a meaningful efficiency advantage — the pyrolysis gases and hot exhaust from carbonization carry enormous thermal energy that can be redirected to the drying process.

Quality Control and Packaging

Before Charcoal Briquettes are packaged and shipped, they are checked against specifications. The most important quality parameters are moisture content (too high and they smoke heavily; too low and they may be overly brittle), compressive strength (a drop test from 1 meter should produce less than 2–3% breakage), ash content, and burn time under controlled conditions.

Packaging is largely determined by the target market. Consumer retail products in the US and Europe are typically 3–10 kg in moisture-resistant paper sacks with poly liners. Restaurant and food service customers often use 10–25 kg sacks. Export and industrial buyers purchase in 500 kg or 1,000 kg jumbo bags.

Why Not All Briquettes Perform the Same

After walking through this process, it becomes clear why two briquettes that look identical on the shelf can behave so differently at the grill. The differences begin before the pressing step ever happens.

A briquette made from high-grade hardwood charcoal fines, pressed with a clean starch binder at optimal moisture and density, contains perhaps 70–75% fixed carbon. It produces minimal ash, burns cleanly after a brief lighting phase, and reaches adequate temperature quickly. A briquette made from a blend of softwood charcoal, coal dust, limestone filler, and a cheap binder might carry 50–60% fixed carbon, produce three times as much ash, and never reach the same peak temperature. Both are compressed charcoal. Neither is lying about what it is. The difference is entirely in the quality of inputs and the care of the process.

This is why the price of briquettes — even controlling for brand premium — is a reasonably reliable signal of quality. The inputs to a good briquette cost more. The process to produce a consistent, well-dried, properly bound product takes more care and equipment. Operators who take shortcuts on raw material quality or process control produce cheaper briquettes, and those savings come directly out of performance.

The Environmental Question

Briquettes have a complicated environmental profile that depends almost entirely on what’s in them and where the carbon comes from.

At their best, briquettes made from charcoal fines that are the byproduct of sustainably managed hardwood operations represent genuine waste valorization — material that would otherwise have no economic use gets converted into a useful fuel. When agricultural waste like rice husks, coconut shells, or sugarcane bagasse provides the carbon, briquettes become a way to create fuel from material that would otherwise decompose in the field or be burned openly.

At their worst — coal-dust briquettes produced with fossil carbon and petroleum-based binders — briquettes have a worse environmental profile than almost any alternative cooking fuel.

The consumer has limited visibility into this because ingredient sourcing is rarely disclosed on packaging. The most reliable signals are the presence of a wood species disclosure, the absence of coal dust in the ingredients list, certification logos from organizations like the Rainforest Alliance or FSC (Forest Stewardship Council), and a country of origin with credible sustainable forestry regulations.

Check out the product categories at The Charcoal Factory:

wholesale hookah charcoal
wholesale BBQ charcoal
Charcoal Supplier for Distributors
bulk charcoal for restaurants
private label charcoal for supermarkets

Frequently Asked Questions

Most people who buy bamboo charcoal in a deodorizer pouch, a face wash, a water filter, or a bag of premium hookah coals have no idea how different it is from the wood charcoal they might use on a grill. They know it’s black, they know it’s supposed to be good for something, and they may have a vague sense that bamboo is sustainable. But the actual science of how bamboo becomes charcoal, why its internal structure behaves so differently from wood charcoal, and what the charcoal manufacturing process looks like from raw stalk to finished product, that story is rarely told.

It’s worth telling, because bamboo charcoal is genuinely unusual. Not in a marketing sense, but in a materials science sense. The cellular structure of bamboo creates a charcoal with properties that wood simply cannot match, and the range of products built on those properties, from water purification to skincare to textile manufacturing to high-end cooking fuel, reflects a material with real, measurable advantages in specific applications. Let us show you how bamboo charcoal is Bamboo Charcoal Made​.

Why Bamboo Is an Exceptional Raw Material for Charcoal

Before getting into the manufacturing process, it’s worth understanding why bamboo produces such distinctive charcoal. The answer lies in bamboo’s biological structure.

Bamboo is technically a grass, not a wood, and this distinction matters enormously. While hardwood trees build their structure through dense interlocking fibers of cellulose, hemicellulose, and lignin laid down over decades, bamboo achieves its structural strength through a different architecture entirely. The culm of the bamboo stalk consists of a dense outer layer of vascular bundles packed tightly with fiber cells, surrounding a progressively less dense interior. The fiber cells in bamboo are narrower, more numerous, and oriented more uniformly than in wood. When this structure is carbonized, the result is a charcoal with a far more developed micropore network than wood charcoal can achieve.

This matters because porosity, specifically the quantity and size of microscopic pores, is the primary determinant of a charcoal’s ability to adsorb molecules from air and water. Adsorption, not absorption: molecules of gas or dissolved chemicals don’t soak into charcoal the way water soaks into a sponge. Instead, they stick to the surfaces of the pores, held by van der Waals forces. More pore surface area means more sites for molecules to attach, which means better performance in filtration, deodorization, and purification applications.

Research published in journals including the Journal of Hazardous Materials and Bioresource Technology has consistently found that bamboo charcoal has a BET surface area, the standard measurement of pore surface area, of 300 to 400 square meters per gram. For context, good wood charcoal typically measures 150 to 250 square meters per gram. The difference is not marginal. It represents fundamentally different performance in the applications that depend on adsorption capacity.

Beyond porosity, bamboo charcoal has two other properties that separate it from wood charcoal. First, it emits far-infrared radiation at rates of 90–95%, compared to 70–85% for wood charcoal. Far-infrared emission is the basis for bamboo charcoal’s use in textiles and wellness products, the claim being that far-infrared promotes circulation and warmth retention. Second, bamboo charcoal is alkaline when in contact with water, with a pH typically in the range of 8 to 10. This makes it useful as a soil amendment and explains why bamboo charcoal sticks placed in drinking water gradually raise the water’s pH toward a mildly alkaline state.

The Raw Material: Not All Bamboo Is Equal

There are over 1,500 species of bamboo distributed across tropical, subtropical, and temperate zones worldwide, and they vary enormously in culm diameter, fiber density, growth rate, and ultimately in the quality of charcoal they produce.

The undisputed standard for premium bamboo charcoal is Moso bamboo (Phyllostachys edulis), a giant temperate bamboo native to China and Japan that dominates commercial bamboo charcoal production globally. Moso culms grow to 15–20 centimeters in diameter and 20–28 meters in height. The fiber density in mature Moso culms is exceptionally high, which translates directly to dense, hard charcoal with well-developed pore structure. China’s Zhejiang, Fujian, and Hunan provinces, the heart of the global bamboo charcoal industry, are dominated by Moso plantations managed specifically for charcoal production.

In South America, Guadua bamboo (Guadua angustifolia) serves a similar role. One of the densest and strongest bamboos in the world, Guadua culms can reach 22 centimeters in diameter and produce excellent charcoal. Ecuador and Colombia have emerging bamboo charcoal industries based on Guadua that are gaining recognition in export markets.

In South and Southeast Asia, species including Dendrocalamus asper and Bambusa vulgaris are widely used for commercial charcoal production, though they generally produce slightly lower quality charcoal than Moso due to a less dense fiber structure.

The harvest timing of bamboo has as much influence on charcoal quality as species selection, and this point is seldom discussed in marketing materials. Bamboo must reach full structural maturity before harvest at least four years old, ideally five to six. Young bamboo (under three years) has not yet developed its full fiber density; the cells are still thin-walled, the lignin content is lower, and the resulting charcoal is soft, high in ash, and poorly structured. Experienced bamboo charcoal producers can identify a culm’s approximate age from the color and texture of its outer surface younger culms are bright green and somewhat glossy; older culms develop a matte, yellowish-green patina. The oldest culms on a stand, five to seven years old, are considered prime material.

Harvest timing within the year also matters. Bamboo harvested in autumn and winter has lower starch and sugar content in its culms than bamboo harvested in spring and summer. These carbohydrates burn off during carbonization, but higher sugar content means more volatile compounds in the kiln and slightly lower final carbon yield. Autumn-harvested bamboo is preferred for premium charcoal production.

Also read – Charcoal grades

Pre-Carbonization Preparation: Cutting and Drying

Fresh-cut bamboo culms contain 50–70% moisture by weight, and the first challenge of bamboo charcoal production is managing this moisture effectively. The principle is the same as for wood charcoal: every kilogram of water in the raw material that must be evaporated during carbonization wastes energy and reduces yield. Getting the bamboo to 10–15% moisture before the kiln is the target.

The preparation approach varies by intended product. For charcoal that will be sold as whole culm pieces, the long sticks used as room deodorizers or placed in water jugs, the culms are cut to consistent lengths (typically 30–60 centimeters) with the nodes left intact. Nodes in bamboo are the solid partitions that divide the hollow interior into chambers, and they serve as structural reinforcement during handling. Culm pieces are then stacked in covered drying sheds with good airflow.

For charcoal that will be processed into granules or powder after carbonization, the form used in filters, cosmetics, and industrial applications, the culms are often split lengthwise or broken into shorter sections before drying. The increased surface area from splitting accelerates moisture loss but produces a less visually attractive piece that’s unsuitable for whole-culm markets.

Natural air drying of bamboo in a well-ventilated shed takes four to twelve weeks, depending on the climate. Forced air or solar drying can accelerate this to two to four weeks. Mechanical drum drying brings it down to 24–72 hours, but requires energy investment. The economics of each approach depend on the scale of the operation and the local climate. In dry highland regions of Sichuan, China, where much premium bamboo charcoal is produced, the climate does much of the drying work naturally. You can also visit this blog for more: Hookah Charcoal Manufacturing Plant.

Carbonization: How is Bamboo Charcoal Made

The carbonization of bamboo follows the same general pyrolysis chemistry as wood heated in a low-oxygen environment, which drives off moisture, then volatile compounds, then hydrogen, leaving behind a carbon skeleton. But bamboo’s unique structure and composition mean the details look somewhat different, and the target temperature varies significantly depending on which product grade is being produced.

At around 100 to 180°C, free moisture finishes evaporating. The bamboo yellows visibly and smells like warm hay. Nothing dramatic is happening chemically, but this phase must be allowed to complete fully before temperatures rise further; rushing this step produces uneven carbonization downstream.

Between 180°C and 270°C, the hemicelluloses in the bamboo begin to decompose. Bamboo has a somewhat different hemicellulose composition than wood, with higher arabinoxylan content. This contributes to the slightly different aroma of bamboo carbonization, sharper and more acidic than wood pyrolysis, and produces pyroligneous acid with a somewhat different chemical profile.

The active carbonization phase begins around 270°C and accelerates sharply through 320–400°C as the cellulose in the bamboo fiber cells decomposes rapidly. Bamboo has a very high cellulose content 40–60% of dry weight, and this decomposition is strongly exothermic, releasing substantial heat and large volumes of flammable pyrolysis gas. In well-designed kilns, this gas is captured and burned as fuel to maintain kiln temperature. The bamboo transitions from brown to black during this phase, and the characteristic pore structure of bamboo charcoal begins to develop as the cell wall material carbonizes around the existing void spaces of the bamboo’s vascular anatomy.

From 400°C upward, the charcoal consolidates. Residual hydrogen and organic compounds are expelled, and the carbon structure tightens. Standard bamboo charcoal for deodorizer, cosmetic, and general filtration use is typically produced with peak temperatures of 500–700°C, held for two to six hours depending on kiln type and batch size.

Also read – Charcoal Exporters Compared

Temperature Defines the Product Grade

What makes bamboo charcoal manufacturing genuinely more complex than wood charcoal production is that the target temperature is not fixed it varies dramatically depending on the intended application, and each temperature range produces a meaningfully different material.

Standard-grade bamboo charcoal at 300–500°C is suitable for fuel and basic soil amendment but has relatively low porosity and adsorption capacity. It is the lowest-value commercial grade.

Between 500°C and 700°C, bamboo charcoal reaches the quality level used for most deodorizers, cosmetics, and general water filtration products. The pore structure is well-developed, the fixed carbon content is 72–82%, and the surface area is in the range of 200–350 square meters per gram. This is the dominant commercial grade for consumer products.

Above 700°C, something more sophisticated begins to happen. The pore structure continues to develop, and the fixed carbon content rises above 82–85%. The resulting charcoal has surface areas of 300–500 square meters per gram, approaching the territory of lower-end activated carbon. This high-temperature grade commands premium prices for water filtration, air purification, and as a precursor for activated carbon production.

Also read – types of charcoal

White Bamboo Charcoal: A Process Unlike Any Other

The most remarkable and least understood product in bamboo charcoal manufacturing is white bamboo charcoal, known in Japan as binchotan (白炭) and in China as baitan. Understanding how it is made requires setting aside most assumptions about what charcoal production looks like.

Standard charcoal production ends at the cooling stage: the kiln is sealed, the temperature drops, and charcoal is discharged. White bamboo charcoal production does not end there. After the bamboo has been fully carbonized at around 800–900°C, the kiln operator dramatically increases airflow, effectively allowing controlled combustion of the charcoal surface. The temperature at the kiln entrance spikes rapidly toward 950–1,200°C. The charcoal in the hottest zone literally glows orange-red.

At these extreme temperatures, the charcoal surface undergoes a rapid transformation. Residual organic compounds and surface impurities oxidize away. The carbon lattice structure reaches a near-graphitic state, becoming harder, denser, and more electrically conductive. The pore structure at this temperature is different from standard charcoal; there are more mesopores (medium-sized pores) in addition to the micropores that dominate lower-temperature charcoal.

Then comes the most distinctive step in all of charcoal manufacturing: the hot charcoal is pulled from the kiln and immediately buried in a quenching mixture of fine earth, sand, and ash. This burial smothers the charcoal before it can combust completely in the open air, and the quenching medium conducts heat away rapidly, locking the high-temperature carbon structure in place. The minerals in the quenching earth coat the surface of each piece, producing the characteristic silvery-white or pale gray surface that gives white charcoal its name.

The resulting product has qualities that genuinely distinguish it from everything else in the charcoal world. It is extraordinarily hard to strike two pieces together to produce a metallic ring that sounds more like stone than carbon. It is electrically conductive, with resistivity low enough to use in some agricultural and industrial applications. It has a surface pH of 9–11, making it strongly alkaline. And it has surface areas that can exceed 400–600 square meters per gram, performing as a premium natural filter without any activation step.

Premium Japanese binchotan made from white oak (Quercus phillyraeoides) or from Moso bamboo is one of the most expensive charcoal products in the world, retailing at USD 15–50 per kilogram depending on quality and origin. Its use in the Tea Ceremony tradition of Japan, where binchotan is burned in specific arrangements to achieve precise temperature profiles, has given it a cultural significance that extends well beyond its physical properties.

Also read – What Is Lump Charcoal Made Of?

Processing After Carbonization

For most bamboo charcoal grades, carbonization produces a finished product that simply needs to be broken, sized, and packaged. But the diversity of bamboo charcoal applications means there is a range of post-carbonization processing that can occur.

Whole culm pieces are the simplest output — carbonized lengths of bamboo that retain the visual character of the original culm, complete with nodes. These are sold directly as deodorizers, water purifiers, and decorative pieces. Quality is assessed visually: the surface should be uniformly black and matte, the pieces structurally sound without cracks running through the nodes, and the weight appropriate for the culm diameter.

For granular products, carbonized bamboo is run through a crusher and then screened to target size ranges. The granule size determines the application — coarser granules (2–8 millimeters) are used in water filter cartridges and aquarium systems, where good flow-through is important. Finer granules (0.5–2 millimeters) are used in air purification systems and as soil amendment. Each size range commands a different price and serves a different market.

Bamboo charcoal powder is produced by further milling granules in a hammer mill or ball mill, then classifying in an air classifier to achieve consistent fineness. Standard cosmetic-grade bamboo charcoal powder is 200 mesh — particles smaller than about 75 micrometers. This is the material that goes into face washes, soaps, toothpastes, and sheet masks. Premium pharmaceutical-grade powder is milled finer still, to 300–400 mesh, and tested rigorously for heavy metal content, microbial contamination, and particle size distribution.

Activated Bamboo Carbon: Taking It Further

Standard bamboo charcoal is already useful for many filtration applications. But the highest-performance filtration products — medical-grade water purifiers, industrial solvent recovery systems, gas purification — require activated carbon, which has surface areas of 700–1,200 square meters per gram and above.

Bamboo charcoal is an excellent precursor for activated carbon production because its already-high starting porosity means the activation step has more to work with. The activation of bamboo charcoal is typically done in one of two ways.

Steam activation involves passing steam through bamboo charcoal at 800–1,000°C. The steam reacts with the carbon surface in a controlled way, etching out additional pore volume and increasing surface area dramatically without chemically contaminating the product. Steam-activated bamboo carbon is the preferred form for drinking water treatment and food-grade applications because it contains no chemical residues.

Chemical activation uses phosphoric acid or zinc chloride to swell and restructure the carbon before or during carbonization. Chemical activation produces very high surface areas but requires a washing step to remove the activation chemical, and the finished product requires certification to confirm residual chemical levels are within acceptable limits for the intended application.

Where Bamboo Charcoal Is Made and Where to Buy It in Bulk

China produces approximately 78% of the world’s bamboo charcoal, primarily in Zhejiang, Fujian, Hunan, and Sichuan provinces. Japan produces smaller quantities of the highest-quality premium products, particularly binchotan. Vietnam, Indonesia, and India have growing production industries.

For bulk purchasing, the sourcing landscape divides broadly into three tiers. At the lowest price point, commodity bamboo charcoal from China — primarily fuel grade and basic deodorizer grade — is available through platforms like Alibaba with minimum orders of 500 kilograms and FOB prices starting around USD 800–1,200 per metric ton. Mid-range quality products, particularly coconut-grade and standard filter-grade bamboo charcoal from China and Vietnam, trade at USD 1,500–3,000 per metric ton in container quantities. Premium products — high-temperature filter grade, cosmetic-grade powder, and binchotan — command USD 4,000–30,000 per metric ton depending on specification and origin.

In India, commercial bamboo charcoal production is concentrated in the northeastern states — Assam, Meghalaya, and Manipur — where Moso and related species grow abundantly. The industry is relatively young but growing, and domestic prices for standard-grade bamboo charcoal range from INR 25 to 60 per kilogram, depending on grade and quantity.

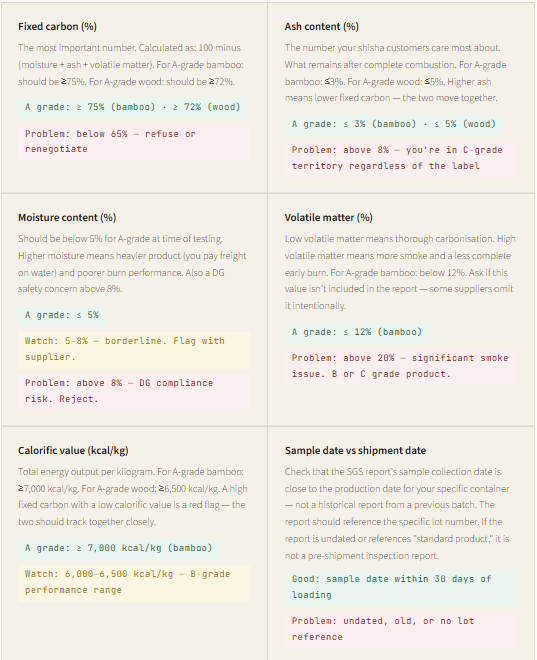

For buyers sourcing bamboo charcoal in bulk, the most important quality specification to request is a proximate analysis confirming fixed carbon content, ash content, and moisture, along with a BET surface area measurement for any product intended for filtration or adsorption applications. Cosmetic and food-contact grades should additionally be tested for heavy metals, particularly lead, arsenic, and cadmium, since bamboo concentrates minerals from soil.

Further Readings:

Charcoal HS Codes
lump charcoal vs briquettes
Best charcoal for grilling
Charcoal grades
can you reuse charcoal
Best charcoal for smoking
types of charcoal

How is activated bamboo charcoal made?

Activated bamboo charcoal starts as standard bamboo charcoal (carbonized at 500–900°C) and then goes through a secondary activation step that dramatically increases its surface area and pore volume. There are two common methods: steam activation, where steam is passed through the charcoal at 800–1,000°C to etch out additional micropores without leaving chemical residue (preferred for drinking water and food-grade use); and chemical activation, where phosphoric acid or zinc chloride swells and restructures the carbon before or during carbonization, producing very high surface area but requiring a washing step to remove residual chemicals. The result is a material with surface areas of 700–1,200+ m²/g, far beyond standard bamboo charcoal’s 300–400 m²/g, making it suitable for medical-grade filtration and industrial gas purification.

How to make charcoal from bamboo?

Bamboo is converted to charcoal through pyrolysis — heating it in a low-oxygen environment so it decomposes without fully combusting. The basic steps: harvest mature bamboo (ideally 5+ years old), cut and dry it to 10–15% moisture, then load it into a kiln and heat it in stages — moisture evaporates around 100–180°C, hemicellulose breaks down between 180–270°C, and cellulose decomposes rapidly from 270–400°C, which is when it actually turns black and becomes charcoal. The batch is then held at a peak temperature (typically 500–700°C for standard grades) for 2–6 hours before cooling and discharging.

Can you make charcoal from bamboo?

Yes. Bamboo carbonizes through essentially the same pyrolysis chemistry as wood, and in some ways produces better charcoal — its cellular structure creates a more developed pore network, giving it higher adsorption capacity than typical wood charcoal. It’s used commercially for everything from cooking fuel to water filtration to cosmetics.

How to carbonize bamboo?

Carbonizing bamboo means heating dried bamboo in an oxygen-restricted kiln so it breaks down into carbon rather than burning to ash. The process moves through defined temperature stages: free moisture evaporates by ~180°C, hemicellulose decomposes between 180–270°C, and the active carbonization phase — where the bamboo turns from brown to black — happens between 270–400°C as cellulose breaks down rapidly and releases flammable pyrolysis gas (often captured and burned to fuel the kiln). From 400°C up, the carbon structure consolidates. Standard bamboo charcoal is held at 500–700°C for several hours before cooling.

How to make bamboo charcoal at home?

A simplified small-batch version of this process can be done with basic equipment, though it won’t match commercial pore development or purity:

1. Dry bamboo pieces thoroughly (cut into manageable lengths; low moisture is essential).
2. Pack them into a sealed metal container (a tin/drum with a small vent hole) to limit oxygen — this is the key principle, since bamboo needs to pyrolyze, not burn.
3. Place the sealed container into a fire or on a heat source and let it heat for roughly 1–2 hours.
4. Watch for smoke to taper off and turn thin/blue — that signals carbonization is mostly complete.
5. Let it cool fully while still sealed before opening, since exposing hot carbon to air can cause it to combust.

The result is a rough, functional charcoal, but it won’t have the surface area or consistency of kiln-produced bamboo charcoal made from properly aged Moso bamboo at controlled temperatures.

Frequently Asked Questions

Hookah charcoal is one of the most specific and demanding products in the entire charcoal industry. It needs to do something that no other charcoal product is asked to do: burn at a precise, steady temperature for 45 to 90 minutes, produce absolutely no smell or flavor of its own, generate minimal ash, never spark, and light either instantly or within a few seconds on a stovetop coil. All of this, in a tablet the size of a large coin, used by someone sitting a few inches away from it in an enclosed hookah lounge.

That set of requirements, invisible heat, zero interference, total reliability, Charcoal grades, is why hookah charcoal manufacturing is a distinct specialization within the charcoal industry, not simply a variation of BBQ charcoal production. The raw material choices, the binder chemistry, the forming technology, and the quality control standards are all shaped by an end application where the user will immediately know if something is wrong.

This article (Hookah Charcoal Manufacturing Plant)covers the complete manufacturing process, the real economics of setting up a plant, what differentiates natural charcoal from quick-light products, and why India is emerging as one of the most strategically positioned countries in the world for hookah charcoal export.

The Two Worlds of Hookah Charcoal

Before going into manufacturing, it’s essential to understand that “hookah charcoal” is not a single product. There are two fundamentally different types, made by different processes, from different raw materials, for different customers, and they are increasingly competing directly for the same market.

Quick-light charcoal is the product that most casual hookah users encounter first. It comes in rolls of ten tablets wrapped in foil, lights with a standard lighter in three to five seconds, and is ready to use in about a minute. It is convenient, inexpensive, and widely distributed. The reason it lights so quickly is the presence of an oxidizer, typically potassium nitrate coated on or mixed into the tablet. This oxidizer releases oxygen as it decomposes, sustaining rapid combustion without the need for a stovetop or torch lighter.

The tradeoff is a chemical smell at ignition that experienced hookah users find unpleasant, and a flavor contamination that persists briefly even after the tablet appears fully lit. Every serious hookah community forum in the world has threads debating how long you need to wait after lighting a quick-light tablet before placing it on the bowl. Answers typically range from 90 seconds to three minutes. That wait time is the potassium nitrate combustion products dissipating.

Natural charcoal tablets — almost always made from coconut shell charcoal have become the dominant choice among dedicated hookah users and the universal standard in hookah cafés and lounges. They contain no oxidizer and must be lit on an electric coil lighter or gas stovetop burner for four to six minutes until fully ashed over on all sides. Once properly lit, they burn at a higher temperature, last significantly longer, produce a fraction of the ash, and have no chemical character whatsoever. The smoke the user tastes is purely the shisha tobacco and whatever flavor it carries.

The shift in the premium hookah market from quick-light to natural coconut charcoal has been one of the defining trends of the past decade. A hookah lounge that used quick-light charcoal five years ago and still does today is, in the eyes of its core customers, signaling that it doesn’t take its product seriously.

Why Coconut Shell Is the Dominant Raw Material

Of all the possible feedstocks for natural hookah charcoal, coconut shell has become the overwhelming industry standard, and it earned that position on genuine performance merits rather than marketing.

Coconut shell is unusually dense for an agricultural byproduct, denser, in fact, than most of the hardwoods commonly used in lump charcoal production. This density comes from the multi-layered fiber structure of the endocarp, the hard shell surrounding the coconut meat. The cells in mature coconut shells are tightly packed, heavily lignified, and oriented in a complex interlocking pattern that gives the raw shell its remarkable hardness. When carbonized, this dense structure produces charcoal with a fixed carbon content of 78–88% among the highest of any natural feedstock and an extremely fine micropore network.

For hookah charcoal, the practical consequences of this structure are significant. High fixed carbon means more energy per gram, which means tablets can be made smaller and lighter while still delivering adequate heat. The micropore structure means combustion is more controlled, and the tablet burns from the outside in at a steady rate rather than having hot spots and cold spots. The very low ash content of coconut shell charcoal (typically 2–5%) means less residue on the bowl and less interference with heat management during the session.

The economics work in the coconut shell’s favor as well. The global coconut processing industry, primarily copra production for coconut oil generates enormous quantities of shell waste. In India, Indonesia, the Philippines, and Sri Lanka combined, an estimated 60–70 billion coconuts are processed annually. The shells, which have no food value, have historically been burned as waste or used as low-grade cooking fuel. The hookah charcoal industry transformed this waste stream into a valuable commodity, creating a supply chain where both the coconut processor and the charcoal manufacturer benefit.

Also read – bamboo charcoal market​

The Manufacturing Process: Natural Coconut Shell Hookah Charcoal

Carbonizing the Shell

Everything begins in the carbonization unit. Coconut shells are loaded into a retort kiln or rotary furnace and carbonized at 600–700°C. The target is charcoal with a fixed carbon content of at least 78%, moisture below 5%, and ash content below 6%. These are tighter specifications than BBQ charcoal because any deviation from these targets shows up immediately in the finished tablet’s burn performance.

The carbonization process for coconut shell follows the same pyrolysis chemistry as wood moisture evaporation, then hemicellulose decomposition, then rapid cellulose breakdown, then carbon consolidation, but the dense, non-cellular structure of the shell means the process proceeds more evenly, and the yield is higher. A well-run coconut shell carbonization unit achieves yields of 28–35%, meaning 280–350 kilograms of charcoal from every metric ton of dry shell.

Quality control at this stage is critical and non-negotiable. Batches that don’t meet the fixed carbon specification will produce tablets that burn at the wrong temperature or run out too quickly. Batches with excessive ash content will produce tablets that ash unevenly, requiring constant management by the user. Every production batch should be tested before it advances to the grinding stage.

Grinding to Specification

The carbonized coconut shell comes out of the kiln as irregular fragments, some of the original shell shape, some broken into smaller pieces, all coated in the fine crumbles from the carbonization process. This material needs to be reduced to a very fine, uniform powder before it can be pressed into tablets.

The grinding process typically runs in two or three stages. A jaw crusher or hammer mill first reduces large fragments to pieces a centimeter or two across. A secondary hammer mill brings this down to the millimeter scale. Then a ball mill or Raymond mill grinds the material to the final target particle size, typically 150 to 250 mesh, or 60 to 100 micrometers. At this fineness, the charcoal powder has a silky texture and flows almost like a liquid when poured.

The reason for grinding this fine is tablet strength. The finer the particles, the more contact surface area between adjacent particles when the tablet is compressed, and the stronger the bond the binder can form between them. Tablets made from coarser charcoal are more porous, which sounds advantageous for burning but actually produces tablets that crumble during handling and may break apart on the hookah bowl.

Must read – charcoal supplier verification checklist

Preparing the Binder

The binder for natural hookah charcoal is invariably a starch, typically tapioca, cassava, or cornstarch, cooked to a gel in hot water. The cooking process is the same as described for briquettes: starch is mixed into cold water, heated to 75–85°C with constant stirring until gelatinization occurs, and the resulting paste is cooled to 40–50°C before use.

For hookah charcoal, the binder ratio runs at 8–12% of dry mixture weight, somewhat tighter than briquette production. Too little binder and the tablets crumble; too much and they are too hard and dense to burn evenly, or the drying time increases to the point of impracticality.

The most critical parameter is binder concentration consistency across batches. A deviation of 1–2% in binder content might be tolerable in BBQ briquettes, where users have low sensitivity to slight performance variation. In hookah charcoal, a 2% variation in binder content produces a measurable change in burn time and heat output that an experienced user will notice immediately.

Mixing

The cooked binder paste and charcoal powder are combined in a sigma blade mixer or double-arm kneader equipment borrowed directly from the food manufacturing and pharmaceutical industries. These mixers work the mixture intensively, ensuring every particle of charcoal is evenly coated with binder rather than leaving dry pockets or binder-rich clumps.

The mixing temperature and duration both matter. Mixing at 35–50°C keeps the starch fluid enough to distribute properly. Less than fifteen minutes of mixing typically produces uneven distribution; more than thirty begins to degrade the binder’s adhesive performance through mechanical shear. Most hookah charcoal manufacturers run mixing cycles of 15–25 minutes.

The finished mixture has the consistency of very stiff, slightly sticky dough. It should hold its shape when pressed in the palm but release cleanly from the surface without excessive sticking. If it’s crumbly, the binder is too dry or too little. If it sticks like clay to every surface, there is too much water.

Explore other Hookah charcoal:

Machine-Made Shisha Charcoal

Shaped Shisha Charcoal

Tablet Pressing: The Defining Step

This is where hookah charcoal manufacturing diverges most clearly from briquette production. Hookah charcoal tablets are pressed on rotary tablet presses, almost identical to those used in pharmaceutical pill manufacturing. This technology allows extraordinary precision in tablet weight, dimensions, and density, with production rates of 5,000 to 30,000 tablets per hour depending on machine size and configuration.

A rotary tablet press works by continuously cycling a set of punch-and-die assemblies through a filling, compression, and ejection sequence. The die cavity is filled with a precise volume of charcoal mixture by a dosing mechanism. Upper and lower punches converge and compress the mixture under a controlled force, typically 8 to 15 kilonewtons for hookah charcoal. The punches withdraw, the tablet is ejected onto a conveyor, and the cycle repeats with the next die station.

The compression force setting is one of the most consequential parameters in hookah charcoal manufacturing. Compress too lightly and the tablet is fragile, crumbles during handling, and may fracture on the hookah bowl. Compress too heavily and the tablet is so dense that airflow through it is restricted, causing uneven burning where the outer surfaces glow but the center never properly ignites. The optimal pressure for a given formulation must be determined empirically and maintained precisely throughout a production run.

Most hookah charcoal is produced in one of three standard formats: round tablets of 33 millimeters diameter weighing 6–8 grams (the global standard for quick-light rolls), round tablets of 40 millimeters diameter weighing 10–14 grams (preferred in Middle Eastern markets and for natural charcoal), or cube format 25×25×25 millimeter squares weighing 20–25 grams which has gained popularity because its shape allows heat management by partial removal from the bowl without the piece rolling off.

Drying: Patience Is the Differentiator In Hookah Charcoal Manufacturing Plant

Freshly pressed hookah charcoal tablets are extremely fragile; the starch binder has not yet dried and hardened, and the tablet is essentially still wet dough compressed into a disk shape. Rough handling at this stage means crumbled tablets and wasted production. The tablets must be moved carefully to drying equipment, ideally on mesh conveyor belts that support the full tablet surface rather than gripping only the edges.

Drying temperature must be controlled carefully. At temperatures above 120°C, the outer surface of the tablet dries rapidly and forms a hard skin before the interior has had a chance to dry, which creates internal stress that produces cracking sometimes visible immediately, sometimes only apparent when the tablet is placed on a heat source during use. Industrial hookah charcoal dryers typically operate at 70–100°C with controlled airflow, achieving a target moisture of 3–5% in four to ten hours.

The economics of drying are significant. Drying is the most energy-intensive step in the process, and the time it takes directly constrains production throughput. Manufacturers who want to increase output without proportionally expanding their dryer capacity are tempted to raise temperatures, and this shortcut produces the cracked tablets that appear in low-quality products. The best hookah charcoal manufacturers treat their drying parameters as core intellectual property and monitor them as carefully as any other production variable.

Quality Testing Before Packaging

Before any batch of hookah charcoal goes into packaging, it should be tested against a minimum set of specifications. This is not bureaucratic box-ticking; it is the practical gatekeeping that separates consistent products from variable ones.

The most important tests are moisture content (above 5% and the tablet produces excessive smoke during lighting), weight consistency (variation above ±5% across a batch indicates pressing inconsistency), drop fragility (tablets should survive a one-meter drop onto a hard surface with less than 2% breakage rate), burn time (tested under controlled air flow conditions natural tablets should burn for at least 60 minutes, quick-light at least 30), ash structure (the ash should form a coherent, gray-white ring around the tablet rather than collapsing into powder, which indicates structural integrity), and absence of chemical odor (particularly critical for natural tablets any chemical smell indicates contamination from a previous production run or a binder quality issue).

Also read – What Is Lump Charcoal Made Of

Setting Up a Hookah Charcoal Manufacturing Plant: The Real Numbers

The investment required to set up a hookah charcoal manufacturing operation depends primarily on production scale, level of automation, and whether carbonization is done in-house or outsourced.

The Entry-Level Operation

The smallest viable commercial operation producing roughly 100 to 300 kilograms of tablets per day, roughly 50,000 to 150,000 tablets can be started with a relatively modest capital investment. You need a grinding system (a hammer mill and ball mill combination runs USD 5,000–15,000), a starch cooking vessel and paddle mixer (USD 2,000–6,000), a semi-automatic or manually loaded rotary tablet press (USD 8,000–25,000), a tray or batch dryer (USD 3,000–10,000), a packaging machine (USD 2,000–8,000), and a working capital reserve for raw materials, typically one to two months of production.

If you are sourcing finished coconut shell charcoal rather than carbonizing your own shells, total capital investment at this scale runs USD 25,000–70,000. If you include a small carbonization unit to process your own shells, add another USD 15,000–40,000. This is accessible territory for a serious entrepreneur, particularly in India or Southeast Asia, where coconut shell charcoal is locally available at competitive prices.

The Commercial Operation

A medium-scale plant producing one to three metric tons of finished tablets per day, roughly 300,000 to 1,000,000 tablets, requires a substantially larger investment but begins to unlock the economies of scale that make export-oriented business viable. You need an industrial rotary kiln or continuous carbonization furnace (USD 40,000–120,000), a multi-stage grinding system with classification (USD 15,000–40,000), an industrial sigma blade mixer (USD 8,000–20,000), a high-speed multi-punch rotary tablet press (USD 30,000–80,000), a mesh belt conveyor dryer (USD 15,000–40,000), and an automated packaging line (USD 20,000–60,000).

Total capital investment at this scale runs USD 150,000–400,000 for the manufacturing equipment, plus land, building, utilities, and working capital. In India, where industrial land in manufacturing zones is available at reasonable lease rates and labor costs are competitive, the all-in investment to reach commercial production might be USD 250,000–600,000, depending on location and specifications.

The Operating Economics

What makes hookah charcoal financially attractive is the margin structure, particularly for export. The raw material, coconut shell charcoal powder, costs INR 30–55 per kilogram in India’s producing states (Kerala, Tamil Nadu, Andhra Pradesh). Starch binder adds another INR 4–8 per kilogram of product. Energy, labor, packaging, and overhead bring the total cost of production to roughly INR 90–150 per kilogram of finished tablets, depending on scale and location.

Export selling prices to Middle Eastern, European, and North American distributors range from INR 350 to 700 per kilogram (USD 4.20–8.50/kg), depending on quality tier, tablet format, and buyer relationship. The gross margin on well-run export operations is 40–60%, substantially above what most manufacturing businesses achieve.

The Middle East alone imports several hundred thousand metric tons of hookah charcoal annually. Saudi Arabia, the UAE, and Egypt are the three largest markets, collectively importing hundreds of millions of dollars in hookah charcoal each year. India is well-positioned to serve these markets from a cost, logistics, and raw material standpoint, and exports have grown significantly over the past decade.

The Quick-Light Product: A Different Manufacturing Logic

Quick-light hookah charcoal is manufactured through a largely similar process, but with several important differences in formulation and handling that are worth understanding separately.

The defining ingredient in quick-light charcoal is the oxidizer, almost universally potassium nitrate (KNO₃), sometimes supplemented with aluminum powder in small quantities. Potassium nitrate is a strong oxidizer that lowers the ignition temperature of the charcoal mixture and sustains combustion even with minimal external oxygen. This is what allows a tablet to be lit by a regular lighter rather than requiring a stovetop coil.

Potassium nitrate is incorporated into the tablet mixture at 5–10% by weight, either mixed uniformly throughout the charcoal powder before pressing or applied as a surface coating after pressing by spraying or dipping in a KNO₃ solution. Surface coating produces more predictable lighting behavior; the oxidizer is concentrated at the surface where the flame first contacts the tablet, but requires a separate coating step and careful drying of the coated tablet.

The critical safety consideration that separates quick-light manufacturing from natural charcoal production is the presence of an oxidizer in the production environment. Potassium nitrate mixed with carbon is, by definition, a reactive mixture — it is the chemical basis of black powder. The concentrations used in hookah charcoal are too low to create explosion risk under normal conditions, but the production area must be maintained meticulously free of ignition sources, grounded against static discharge, and operated with fire suppression equipment close at hand. Batch sizes of the mixed material should be kept small. Storage of KNO₃ and mixed charcoal must comply with hazardous materials regulations, which vary by country and jurisdiction.

Also read – Top countries exporting charcoal

What to Know Before You Start

The hookah charcoal market looks attractive on paper, with high margins, growing global demand, and abundant raw material in South Asia. But the people who succeed in this business consistently point to a few factors that aren’t obvious from the outside.

Quality consistency is everything. The hookah market, particularly in the export segment, runs on repeat business from cafés and distributors who will switch suppliers the moment quality becomes unreliable. A single bad batch of crumbling tablets, variable burn times, and unexpected chemical smell can cost a supplier a relationship that took years to build. The investment in quality control equipment and laboratory testing is not optional.

Regulatory compliance for export markets is more demanding than it appears. European markets require compliance with REACH chemical regulations, which means documentation of every ingredient and its chemical profile. Some Middle Eastern markets require country-specific certifications. The US market has its own import documentation requirements. Building relationships with an export compliance specialist before your first shipment is cheaper than discovering problems after it arrives.

The move toward natural coconut shell charcoal is structural and unlikely to reverse. Entrepreneurs entering this market today who are building quick-light production capacity are swimming against a tide of consumer preference. The capital investment required for natural charcoal production is not dramatically higher than for quick-light, and the market positioning is substantially better.

FAQs About Hookah Charcoal Manufacturing Plant
